VONOA Carbon Spoke
★ High strength: Mechanical lock, glue free.
★ Ultimate tensile strength 4000N.
★ Ultra light &Ultra aero: 1.9g lightest &Φ1.8 thinnest.
★ High stiffness performance on the wheel.

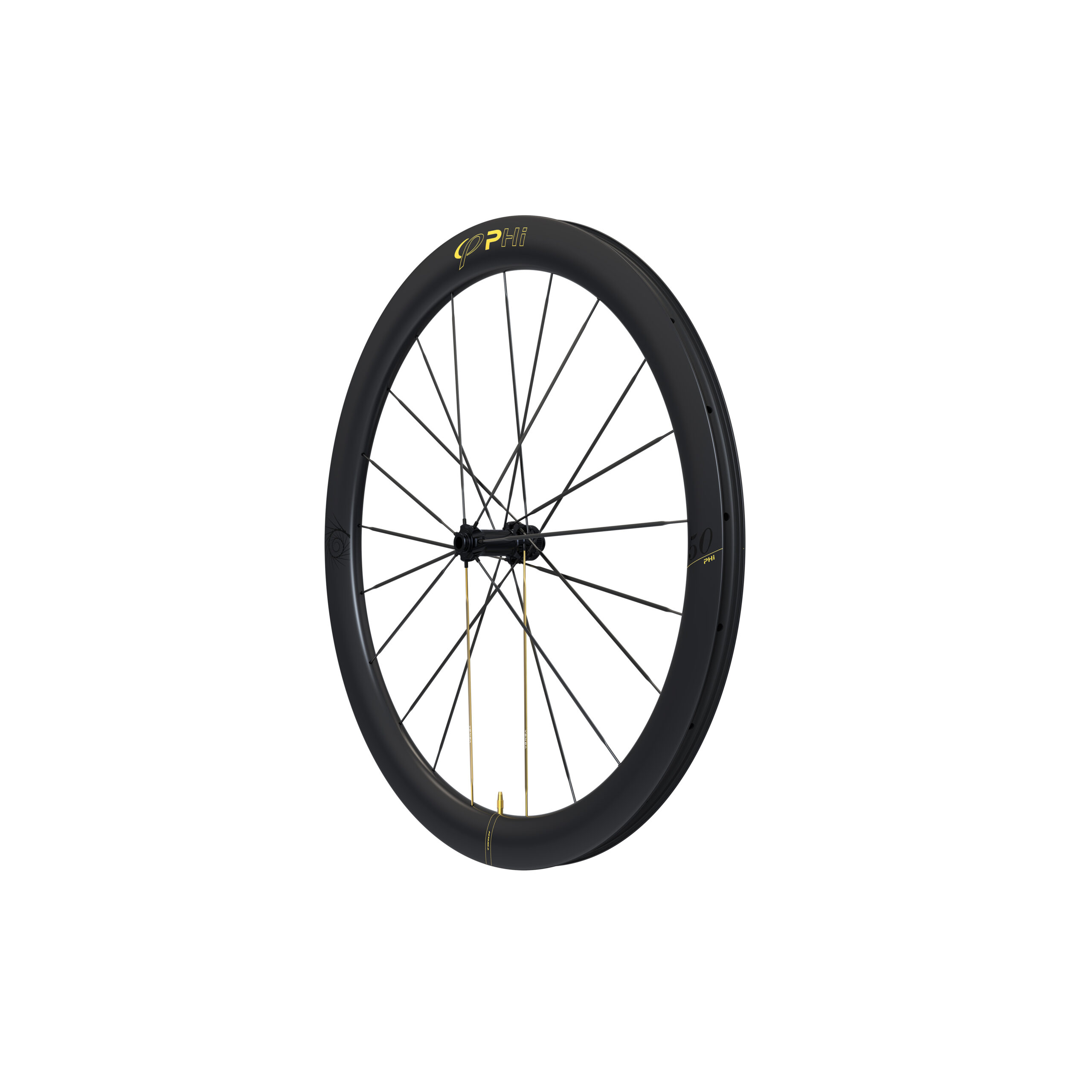

Torch Series | The Adaptive Performer
Engineered with hidden VONOA carbon spokes and optimized 35mm/50mm rim profiles, this
wheel-set fine-tunes the balance of efficiency and stability across variable terrain.
Its low-drag design delivers responsive accelera-tion for breakaways and enduring control for
long-range efforts—crafted for riders who master changing conditions.
| Rim | |
| Wheel Size | 622mm(700c) |
| Material | Carbon Fiber |
| Tire Compatibility | Tubless Ready |
| Bead Type | Hooked |
| Rim Depth | 50mm |
| Inner Width | 23mm |
| Outer Width | 30mm |
| Hub | |
| Front Hub Spacing | 12x100mm |
| Rear Hub Spacing | 12x142mm |
| Bearing | TPI Stainless Steel |
| Brake Compatibility | Disc (Center Lock) |
| Freehub Type | Ratchet |
| Freehub Compatibility | Shimano HG/ SRAM XDR |
| Other | |
| Rim Finish | UD Matte |
| Included Accessories | Pre-Installed Tubeless Valves & Tapes |
| Weight (Pair) | 1246g±3%(Without tubeless valves and tapes) |
| Max load, Bike + User (Kg) | 270lbs/120kg |
| Compatible Tire Sizes | 700 x 28-45C |
| Recommended Tire Sizes | 700 x 28-30C |
| Certification | UCI Approved |
| Spoke (VONOA Carbon Spoke) | |
| Spoke Count | 21F/24R |
| Spoke Type | Carbon Spoke (4.0mm) |
★ High strength: Mechanical lock, glue free.
★ Ultimate tensile strength 4000N.
★ Ultra light &Ultra aero: 1.9g lightest &Φ1.8 thinnest.
★ High stiffness performance on the wheel.
High automation level. In-mold finished without drilling, polishing and painting.
Aerodynamics and ergonomic purpose.
★ Excellent performance control.
★ Appearance is perfect after curing, reduces the subsequent processing.
★ Realize the design and production of complicated profiles.
★ Reduce the energy consumption: 70%.
★ Spokes and hub one piece integrated.
★ Adjustable spoke tension.
★ Faster acceleration, more agile steering, more stable handling, and superior aerodynamic performance.
★ Improved Lateral Stiffness.
★ Superior Aerodynamics.
★ Tubeless Compatibility.
★ Easier maintenance and convenient adjustment.
1. Reduce 120-180g CO₂ emissions per pair of wheels, eliminate painting pollution, zero VOCs released, embrace green cycling
2. Save 40-60g weight per pair, lighter weight directly boosts acceleration and climbing efficiency for a smoother ride
3.Retain original carbon fiber weave texture, no coating peeling risk, 30% improved durabilityPrecision-molded one-piece forming, ready-to-use right out of the mold, no redundant processes, back to the authentic carbon fiber texture
